From oil sample to verdict in minutes.
On your own bench.
VeroOCM is the oil condition monitoring platform for on-site oil analysis: eight VeroSci at-line analyzers on one system, live test runs from the instrument, ASTM-method results with QC behind every number, and asset ratings that name the rule, the value, and the recommended action.
No mail-in lab. No waiting weeks.
VeroVis · VeroFoam · VeroOxi · VeroDry · VeroAsh · VeroRes · VeroCor · VeroCal
01THE PROBLEM
The mail-in loop is broken
Used-oil analysis has a latency problem, a pricing problem, and an alarm problem — and they compound.
3–7 d
in transit before the lab sees it
24–72 h
lab turnaround, after transit
84%
of assets in severe alarm in one published program
30–50%
ASTM D2272 reproducibility between labs — 18–33% within one
Degradation tests (RPVOT, foam, oxidation) are $30–150 exception add-ons — ordered one-off, so nobody holds them as a time series.
Statistical alarm limits need history — the leading bench platform will not compute them below 80 samples per component type. Decades at quarterly mail-in cadence.
So programs run static defaults — in one published program ~84% of assets sat in severe alarm, against the ~20% practitioners call manageable.
3–7 d in transit, then 24–72 h in the lab — longer when bottles wait for a shipment
exception tests extra · trend starts at sample 4
no courier, no lab queue · every run is a series point
day 0
2 d
4 d
6 d
8 d
10 d
02THE UNFAIR ADVANTAGE
We own the instrument and the software
Eight at-line analyzers, ten ASTM methods and four practices, one shared device agent, one oil analysis software platform. The instrument itself streams the run, writes its own certificate, monitors its own health, and joins a managed fleet in under ten minutes.
operator time + consumables
The exception slate becomes a weekly series — not a one-off order.
1.7×
ASTM D2272-22: one bench keeps you on the tighter repeatability term. Between-lab scatter goes away; method variance does not.
01
VeroVis
Kinematic viscosity · VI
02
VeroFoam
Foaming tendency
03
VeroOxi
Oxidation stability (RPVOT)
04
VeroDry
Water content
05
VeroAsh
Ash content
06
VeroRes
Carbon residue
07
VeroCor
Copper corrosion
08
VeroCal
Heat of combustion
ARCHITECTURE
One outbound port. No Windows PC.
Industrial-grade plumbing your IT department will actually approve.
CUSTOMER LAB · 443 out only
8 Vero analyzers
secure agent · works offline
Native iOS · Android
QR sample intake
Secure broker
per-device auth
LIMS / CMMS / ERP
VeroOCM platform
API · live streams
Time-series store
append-only ingest
encrypted · 443
https
ingest
webhooks · REST · CSV · SF
store
Encrypted outbound HTTPS — the only network requirement is one open port.
One secure agent on every instrument; the demo runs the same software as production — they cannot drift.
An append-only ingest log, ordered and redelivery-safe, in a time-series store.
Web + native iOS and Android, live; self-hosted or cloud — sovereignty without losing the intelligence.
The lab needs exactly one thing from IT: outbound HTTPS. Everything else is managed.
04FOLLOW ONE BOTTLE
Follow one bottle, end to end

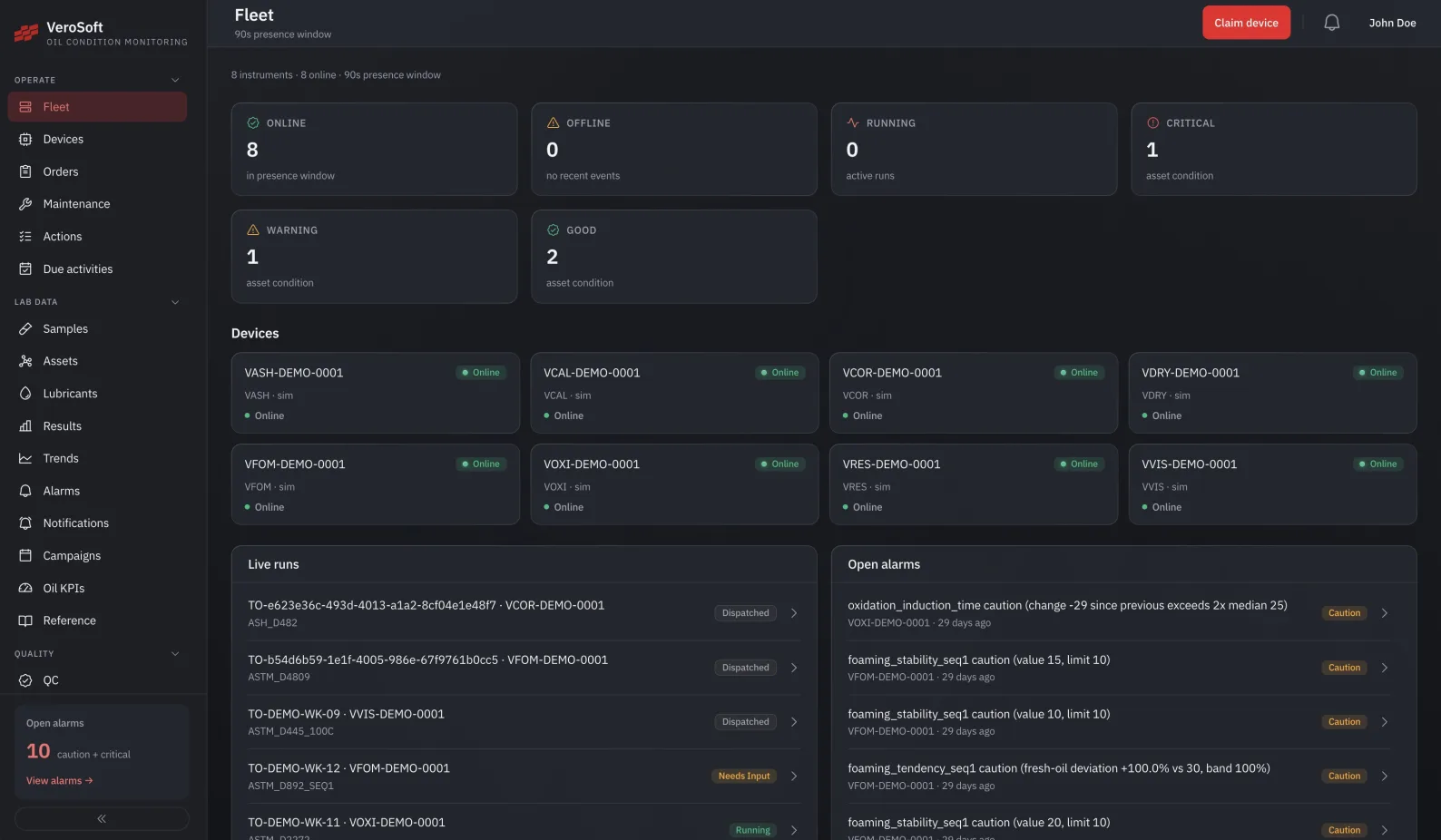

One sample, five chapters: the live run, the custody chain, the instrument’s own QC, the five evaluations behind the verdict, and the rollup your board reads. Every screen below is the real product.
05INTELLIGENCE · TRENDS & PROGNOSTICS
We recover the machine from the oil's response
RPVOT REMAINING USEFUL LIFE
ASTM D4378
% of fresh RPVOT
100%
75%
50%
25%
0
4k
8k
12k
16k
condemning limit · 25% of fresh
act by · conservative edge
measured
fit
condemning limit
machine-hours on the x axis
END-OF-LIFE ALERTS
raised from both the elapsed interval and the RUL fit.
A trend against the ASTM D4378 condemning limit — the act-by date reads from the conservative confidence edge, or the platform refuses to guess.
Viscosity-change attribution
V40 + V100 + VI + RPVOT separate
shear vs oxidation vs contamination vs wrong oil
indeterminate, never a guessWater signature
A step 6× the series’ own rate reads as a cooler leak, not the weather.
checked against co-located peersOil-change segmentation
Trends are never stitched across a drain.
a rate across a drain is a lie06INTELLIGENCE · OIL DATA
Cited data. Honest KPIs. Readable standards.
Every number on the platform tells you where it came from.
PROVENANCE LEDGER
31 products · 6 categories
PRODUCT
PROPERTY
VALUE
SOURCE
Turbine oil · ISO VG 46
RPVOT
980 min
manufacturer PDS, cited
Hydraulic · ISO VG 68
KV40
68.2 cSt
site-measured fresh reference
beats the datasheet
Gas engine oil · SAE 40
TBN
—
not stated → stays empty
never interpolated
PDS INTAKE
upload
extraction
human confirm
NO SOURCE, NO ROW
the database refuses a row without a source.
Every value cited to its data sheet; a site-measured fresh-oil reference beats the datasheet; unstated properties stay empty, never interpolated.
OVERALL LUBRICATION EFFECTIVENESS
78.4%
OLE = PClpm × PCcct × PClqt
if a term is missing, the KPI is blank with a reason — never a fabricated 100%
every KPI shows its own formulaALARM RATE · FLEET
0.12
0.20
ceiling 0.20 — the red line
STANDARDS LIBRARY · 14 READABLE PAGES
each page links to the original at astm.orgTEN TEST METHODS · EACH LINKED TO THE INSTRUMENT THAT RAN IT
FOUR PRACTICES & GUIDES · THE LOGIC THAT CITES THEM
Fourteen readable pages behind your results — what each standard measures, how the bench runs it, what it cannot tell you, and a link to the original at astm.org.
07INTELLIGENCE · THE INSTRUMENTS THEMSELVES
The platform maintains the analyzers too
VeroOxi · BATH HEAT-UP DRIFT
PLATFORM · EWMA indicator
% vs baseline
0
+24
+18
+12
+6
baseline
+18% vs baseline
ticket opened · evidence chart attached
runs
per-run result
EWMA — the indicator that fires
13 DRIFT INDICATORS
EWMA
CUSUM
threshold
duty
DRIFT CAUGHT BEFORE FAILURE
every indicator opens its ticket with the evidence chart attached.
Drift caught before failure: bath heat-up time vs baseline → ticket, days early.
30-task maintenance catalog
built from the printed manuals of all eight analyzers
“200–250 uses” — user manual, cited
per ASTM D6299 practice
drift indicator, evidence chart attached
Usage meters come free
Run telemetry already carries them.
A service resets both
meters → 0 · drift baseline → re-established
QC drift after a service reads as “post-maintenance bias — re-baseline?”
Plant side
08TRUST ARTIFACTS
Certificates you can verify. An audit log you can't quietly edit.
CERTIFICATE · VC-2026-000148
IMMUTABLE
Revision 1
SUPERSEDED
snapshot sha-256
9f2c4a1e77b30d58
issued 12 Aug 2026
Revision 2
CURRENT
snapshot sha-256
4b71c3a90e29d514
issued 14 Aug 2026
+1
reissue
REASON — REQUIRED
re-authentication required
“V40 transcription corrected against the instrument record.”
PUBLICLY VERIFIABLE BY HASH
ocm.verosci.com/verify/
4b71c3a90e29d514
VALID · REV 2
public verify is by content-hash prefix — not a tenant session.
Certificates are immutable — a correction reissues as revision +1 with a required reason, and the prior is marked superseded.
AUDIT LOG · VERIFY CHAIN
APPEND-ONLY
each entry stores the hash of the previous one
GENESIS
prev
—
self
GENESIS
#1041
prev
GENESIS
self
8e33…
#1042
prev
8e33…
self
c07b…
#1043
prev
c07b…
self
≠ stored
edit detected here
“VERIFY CHAIN” REPLAYS EVERY ENTRY FROM GENESIS AND RETURNS ONE OF TWO ANSWERS
BROKEN AT SEQ #1043
reason: entry hash mismatch — content tampered.
VALID · 3,412 ENTRIES
…or none was, and it returns the head hash.
DETECTS
seq gap
prev_hash mismatch
content tampered
Tamper-evidence, not tamper-claims: the chain names the exact entry that changed.
ALSO ON THE RECORD
report schedules
delivery subscriptions
signed-delivery log
09COMPETITION
The slot we occupy is empty
Everyone else touches the sample. We touch the instrument. On-site oil condition monitoring with ASTM-grade results in minutes is a category with one incumbent — and we beat it on architecture, QC transparency, and openness.
● published ◐ partial ○ not published ✕ architecturally absent — not applicable
Public vendor documentation only, checked Aug 2026 — contradictory reseller pages excluded.
days → minutes
Send-away stacks 3–7 days of transit onto a 24–72 h lab turnaround. The bench answers inside the shift.
Transit: Oil Analyzers Inc. FAQ · lab turnaround and 24 h dispatch guidance: Noria / Machinery Lubrication. No end-to-end draw-to-result study is published.
84% → ~20%
Assets in severe alarm under default limits in one published program, against the ~20% practitioners call manageable.
Williams, Walsh & Garvey (Ametek Spectro Scientific), Precision Lubrication — one example program and a practitioner rule of thumb, not a standard. ASTM D7720 sets no ceiling.
30–50% → 18–33%
RPVOT reproducibility between labs against repeatability within one. Staying on one bench keeps you on the tighter term — 1.7× by the standard’s own equations, not 5×.
ASTM D2272-22 §12.3 — r = 0.053·X^1.23, R = 0.09·X^1.23, evaluated over 200–2,000 min. Specialists report 30–50% in practice; one round robin at 39% (Fluitec, 2010).
10DEPLOYMENT & OPENNESS
Open by design. Deployed your way.
Closed vendor worlds on one side. Browser, open egress, and a flat per-lab license on the other.
Windows desktop apps and LAN-bound middleware
Hard device caps; media-pack onboarding
Exports capped; intelligence paywalled by tier
History held by the lab or lubricant contract
Browser + mobile anywhere; zero Windows footprint.
Open egress: REST, CSV, schema-published JSON exports, scheduled SFTP drops, one CMMS webhook.
Brand-neutral — not tied to a lubricant supplier or a lab contract; your history is yours and exportable.
Cloud today, self-hosted next — sovereignty without giving up the analytics.
Licensing principle: flat per lab — never per instrument, never per adapter, no device cap.
11THE 10-MINUTE LIVE DEMO
The 10-minute live demo — it’s a script, not a promise
A live walkthrough of the real product. Timing is a script, not an SLA.
1 · Claim
type the printed code
2 · Register
a sample, print QR
3 · Run
watch D445 stream live
4 · Certificate
appears on completion
5 · Breach
a doped run fires
6 · Explain
the alarm names its rule
7 · Prove
open the QC chart
WHY WE WIN
Glass-box oil condition monitoring.
Every alarm names its rule. Every forecast ships a confidence band. Where the data can’t support a number, the screen says so.
Honest boundary: in a published plant assessment, oil analysis and vibration agreed only 27% of the time — we are the orthogonal channel, not a vibration replacement.
AI posture: analytics are physics-grounded and validated; commentary is drafted — an analyst signs.
Ask them for their model’s validation report. Then ask us.
