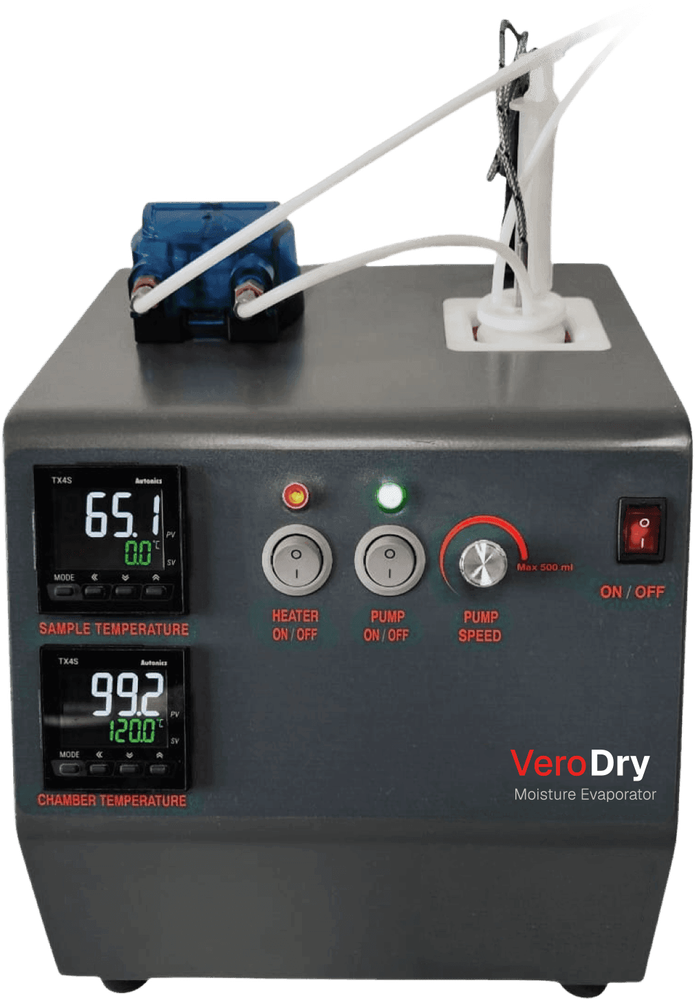

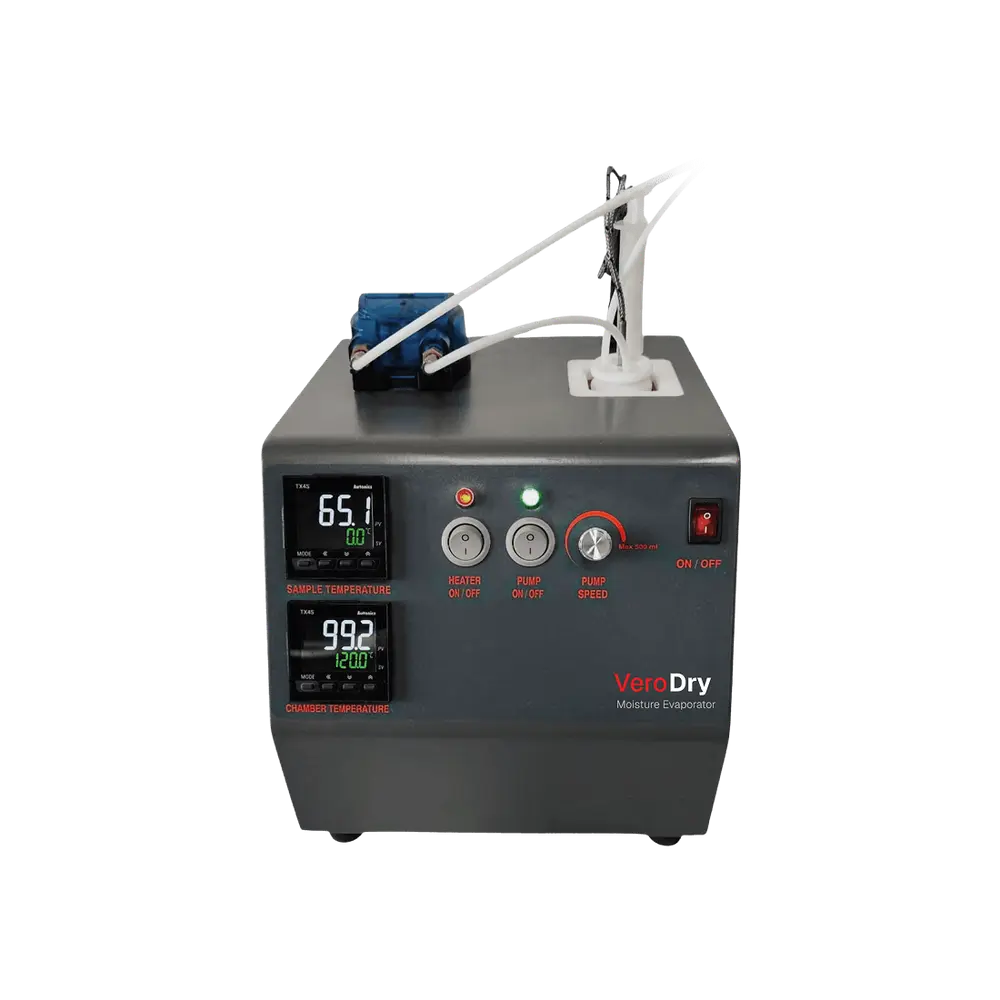

Oil Moisture Analyzer
The VeroDry oil moisture analyzer is designed for precise moisture determination in lubricants, grease, and other viscous liquids. Built for laboratory environments, it delivers reliable results for petroleum testing, lubricant analysis, and quality control applications.
Results land in VeroOCM, the on-site oil analysis platform.
Standards
- ASTM D6304
- IP 398
- DIN EN ISO 12937
The VeroDry performs accurate moisture determination using the Karl Fischer method in accordance with standards such as ASTM D6304, IP 398, and DIN EN ISO 12937. These standards ensure reliable and repeatable moisture analysis for oils, lubricants, and other liquid samples in petroleum and industrial laboratories.
Highlights
The VeroDry moisture in liquids analyzer provides precise and efficient moisture determination for viscous liquids including lubricants, grease, tar products, and paints. By utilizing a solvent-free indirect titration method, the device eliminates the need for frequent waste disposal, enabling up to 30 consecutive tests without interruptions.
The system uses a solvent-free indirect titration method, allowing laboratories to perform up to 30 consecutive tests without waste disposal between runs. Transparent chambers allow real-time monitoring of the evaporation process, while PID temperature control ensures stable heating up to 200°C. The compact and durable design supports reliable operation in demanding laboratory environments and integrates easily with Karl Fischer titrators for accurate moisture analysis.
Features
Solvent-Free Moisture Analysis Features
The VeroDry is an advanced oil moisture analyzer designed for efficient moisture determination in petroleum and lubricant samples.
- Solvent-Free Testing with Up to 30 Consecutive Runs: The VeroDry allows for up to 30 tests without the need for waste disposal between runs, ensuring high efficiency and minimal environmental impact.
- Precise Temperature Control with PID Technology: Equipped with advanced PID temperature control, the VeroDry delivers highly accurate and stable heating, with the ability to reach temperatures of up to 200°C in just two minutes.
- Transparent Evaporation Chamber for Easy Monitoring: The transparent chamber provides full visibility of the sample, allowing users to track the evaporation process and monitor progress without opening the device.
- Compliance with ASTM D6304 Standards: The VeroDry meets the rigorous requirements of ASTM D6304, ensuring reliable and industry-standard results for moisture testing in petroleum-based products and other viscous liquids.
Operation and System Integration
The VeroDry oil moisture analyzer integrates easily into existing laboratory workflows, offering simple operation and full compatibility with standard Karl Fischer titrators.
- Simple and Intuitive Setup Process: This video guides users through the easy-to-follow setup process, ensuring the VeroDry is ready for use in just a few steps, providing quick and accurate results.
- Adjustable Pump Speed and Temperature Controls: With fully adjustable settings for pump speed and temperature, users can optimize the VeroDry's performance for a wide range of sample types, improving the efficiency and accuracy of moisture testing.
- Compact and Durable Design: The VeroDry's compact, lightweight structure makes it easy to integrate into any laboratory setting while maintaining a robust build for long-term use and consistent results.
- Full Compatibility with Karl Fischer Titrators: The VeroDry is compatible with most leading coulometric and volumetric Karl Fischer titrators, offering versatile options for moisture testing across various applications.
Technical Specifications
| Model | VeroDry - Moisture Evaporator |
|---|---|
| Standards Compliance | ASTM D6304, IP 398, DIN EN ISO 12937 |
| Monitoring | Chamber and sample temperature |
| Heating Capacity | From Ambient to 200°C (with the ability to reach 150°C in 2 minutes) |
| Evaporator Chamber | Pyrex glass – Teflon with maximum capacity of 50 mL |
| Peristaltic Pump Capacity | 50 mL/min to 500 mL/min |
| Test Chamber | Stainless steel, teflon, glass material |
| Device Operating Enviroment | Max. 10°C to 50°C |
| Power Output | 200 W |
| Power Requirement | 220 VAC – 50 Hz |
| Dimensions | W: 23cm x D: 32 cm x H: 31 cm |
| Net Weight | 8 kg |
Resources
Frequently Asked Questions
How does VeroDry improve moisture in oil measurement accuracy?
Our oil moisture analyzer enhances accuracy by using a controlled evaporation process combined with Karl Fischer titration. By separating moisture from the sample before analysis, the system minimizes interference from complex matrices such as lubricants, grease, and heavy oils, ensuring reliable and repeatable results.
What makes the VeroDry oil moisture analyzer different from traditional Karl Fischer systems?
We designed the VeroDry as a solvent-free moisture evaporator, allowing laboratories to perform up to 30 consecutive tests without intermediate waste disposal. This significantly reduces manual handling, improves efficiency, and minimizes environmental impact compared to traditional direct titration methods.
How does VeroDry support continuous laboratory workflows?
The VeroDry is built for high-efficiency operation, enabling multiple consecutive tests without interruption. Its stable temperature control, integrated evaporation chamber, and compatibility with Karl Fischer titrators allow laboratories to maintain consistent throughput without frequent system resets or cleaning cycles.
How is temperature controlled during moisture in oil measurement?
Our system uses advanced PID temperature control to ensure stable and precise heating conditions throughout the evaporation process. With the ability to reach temperatures up to 200°C, the VeroDry ensures complete moisture extraction even from viscous or complex samples.
What types of samples can be analyzed with your moisture evaporator?
The VeroDry is specifically designed for challenging samples such as lubricants, grease, heavy oils, tar products, and paints. Its indirect measurement approach makes it ideal for substances where direct moisture analysis may be difficult or inaccurate.
How does your moisture evaporator integrate with existing laboratory equipment?
We designed the VeroDry to work seamlessly with most Karl Fischer titrators, supporting both coulometric and volumetric methods. This allows laboratories to integrate the system into existing workflows without requiring major equipment changes.
How does your lab moisture analyzer improve operational efficiency?
By eliminating solvent use, reducing waste handling, and enabling multiple consecutive tests, the VeroDry significantly reduces downtime and manual intervention. This allows laboratories to focus on analysis rather than maintenance, improving overall productivity.
