Vapor pressure measurement is a quality control parameter for crude oils, affecting everything from storage safety to transportation requirements and refinery processing strategies. ASTM D6377 provides the standard test method for determining vapor pressure of crude oil using an automated expansion method that delivers accurate results in minutes.
What ASTM D6377 Measures
ASTM D6377 determines the vapor pressure exerted in vacuum by crude oils at specified vapor-liquid ratios. The method covers samples that exert vapor pressures between 25 kPa and 180 kPa at 37.8°C, with vapor-liquid ratios ranging from 4:1 to 0.02:1.
Vapor pressure indicates how readily a crude oil releases vapors at given temperatures. Higher vapor pressure means more volatile components are present, which affects flammability classification, storage requirements, and handling protocols. This information helps refineries optimize processing routes, assess transportation hazards, and ensure products meet commercial specifications.
The test method allows vapor pressure determination at temperatures from 0°C to 100°C and pressures up to 500 kPa, though precision and bias statements apply specifically to the standard conditions. Importantly, ASTM D6377 accommodates crude oils with pour points above 0°C, making it suitable for heavier crude types that solidify at room temperature.
Understanding Vapor-Liquid Ratios
The vapor-liquid ratio represents the proportion of vapor volume to liquid volume in equilibrium under specified conditions. ASTM D6377 uses the designation VPCRx, where x indicates the vapor-liquid ratio used during testing.
Testing at a 4:1 vapor-liquid ratio (VPCR4) at 37.8°C produces results that can be related to Reid vapor pressure determined by ASTM D323. This relationship enables comparison between different test methods and helps laboratories validate results across multiple analytical approaches.
Testing at a 0.02:1 vapor-liquid ratio closely mimics conditions inside an oil tanker, providing data directly relevant to shipping and storage operations. This lower ratio represents more realistic field conditions where liquid volume greatly exceeds vapor space.
The ability to vary vapor-liquid ratios makes ASTM D6377 versatile for different applications. Laboratories can select ratios that best represent the actual conditions crude oil will encounter during storage, transportation, or processing.
Live vs. Dead Crude Oils
ASTM D6377 defines two categories of crude oil based on vapor pressure characteristics:
Dead crude oil has sufficiently low vapor pressure that it doesn't boil when exposed to normal atmospheric pressure at room temperature. These samples can be handled using standard non-pressurized containers like cans without losing sample integrity or volatile components.
Live crude oil possesses high enough vapor pressure that it would boil if exposed to atmospheric pressure at room temperature. These samples require pressurized sampling systems and specialized containers to prevent loss of light ends and maintain sample integrity throughout handling and testing.
Understanding whether crude oil is live or dead determines appropriate sampling procedures, container types, and handling protocols. Using incorrect sampling methods for live crude results in inaccurate vapor pressure measurements due to loss of volatile components.
How the Test Works

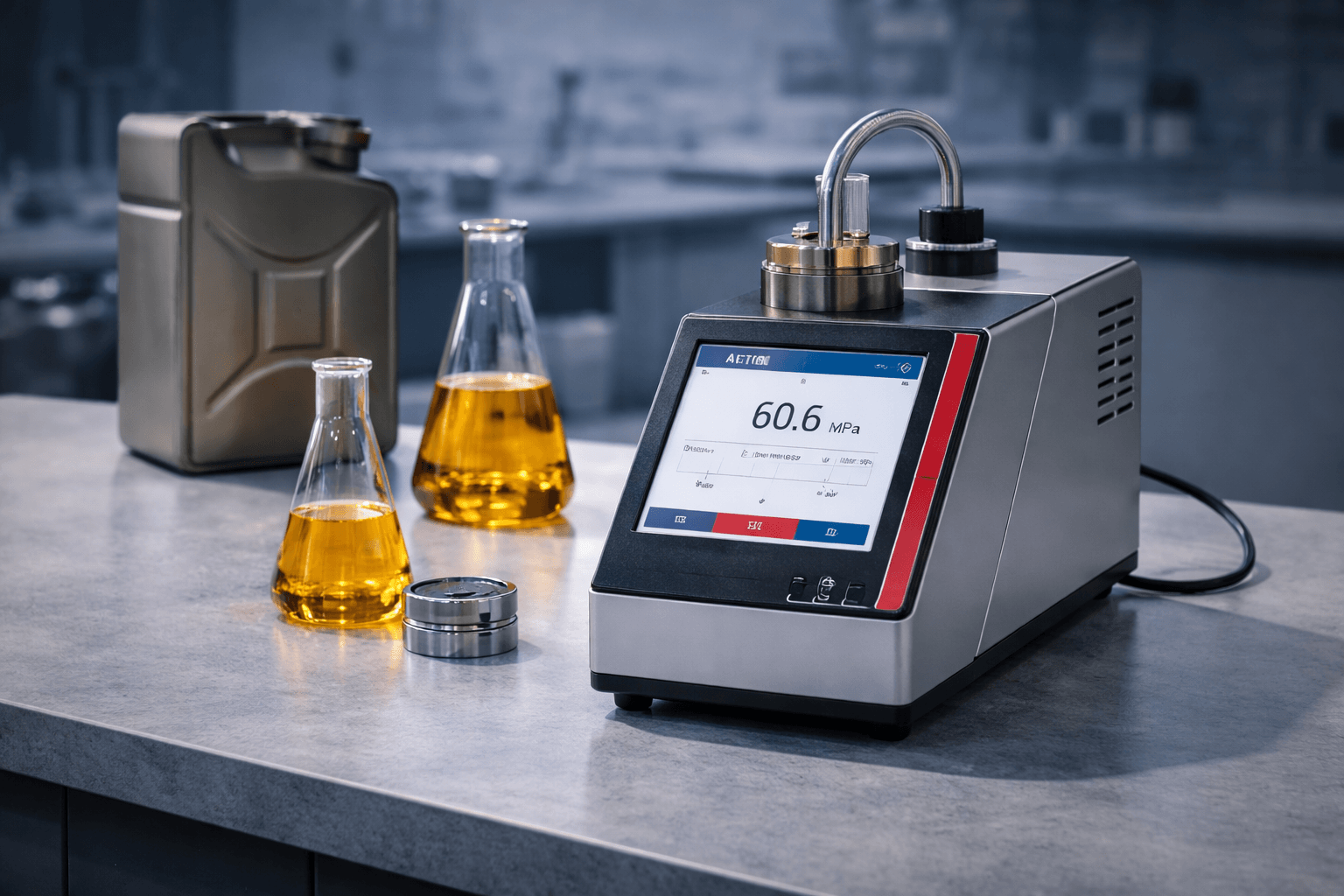

ASTM D6377 employs a sophisticated automated instrument with a measuring chamber containing a movable piston. The process begins by drawing a known sample volume into the temperature-controlled chamber at 20°C or higher. For crude oils with pour points above 15°C, the introduction temperature must be at least 5°C above the pour point to prevent solidification.
After sealing the chamber, the piston moves to expand the volume until achieving the desired vapor-liquid ratio. The measuring chamber temperature is then adjusted to the target testing temperature. Once temperature and pressure reach equilibrium, the measured pressure is recorded as the VPCRx result.
The sample is mixed during measurement by shaking the chamber at a minimum frequency of 1.5 cycles per second. This ensures pressure equilibrium is achieved within a reasonable timeframe of 5 to 30 minutes. Modern automated instruments like the Eravap analyzer can complete accurate measurements in approximately 5 minutes using a sophisticated piston-based measurement principle.
Instrument specifications include:
- Measuring chamber volume of 5 to 15 mL
- Pressure transducer range from 0 to 500 kPa with 0.1 kPa resolution
- Temperature control accuracy of ±0.1°C
- Vapor-liquid ratio adjustment accuracy within 0.01
- Platinum resistance thermometer for precise temperature measurement
Testing High Pour Point Crude Oils
High pour point crude oils present unique challenges for vapor pressure testing. These thick, heavy samples tend to solidify at room temperature, potentially clogging instruments or causing wax buildup inside the analyzer.
For crude oils with pour points of 30°C or higher, specialized procedures ensure accurate testing without damaging equipment. The sample and instrument must be heated well above the pour point throughout the entire procedure.
Syringe Filling Method for Dead Crude
This approach works for samples that don't release gas during heating or air exposure. Warm the sample bottle in a water bath to at least 5°C above its pour point. Set the instrument filling temperature to match or exceed this temperature. Quickly draw the sample into a syringe and connect it to the analyzer for immediate testing.
After completing the test, rinse the analyzer immediately with light gasoline or toluene to prevent wax buildup that could interfere with subsequent measurements.
Floating Piston Cylinder Method for Live Crude
Pressurized samples that might outgas during heating require floating piston cylinders to maintain sample integrity. Connect the cylinder to the analyzer and place it in a heated water bath. Bring both the cylinder and analyzer to the target temperature before opening the outlet valve and running the test.
This method prevents loss of volatile components while accommodating the heating requirements of high pour point materials. Immediate post-test cleaning remains essential to prevent residue accumulation.
Precision and Quality Control
ASTM D6377 provides detailed precision statements based on interlaboratory testing with seven laboratories examining six crude oil samples spanning 34 to 117 kPa vapor pressure range.
Repeatability, the agreement between successive tests by the same operator, varies depending on sample type and vapor-liquid ratio. For samples in pressurized floating piston cylinders tested at 4:1 vapor-liquid ratio and 37.8°C, repeatability is 2.48 kPa. For non-pressurized samples under the same conditions, repeatability is 2.29 kPa.
Reproducibility, the agreement between different laboratories, shows greater variation. For pressurized samples at 4:1 ratio, reproducibility is 4.26 kPa, while non-pressurized samples show 5.26 kPa reproducibility.
Practical Applications and Benefits
Vapor pressure data from ASTM D6377 serves multiple critical functions across crude oil operations. Producers use results to classify crude oils for safe handling and storage. Shippers rely on vapor pressure to determine appropriate transportation methods and containers. Refineries use the data to optimize initial treatment processes and predict behavior during atmospheric distillation.
The test method's ability to work with samples at various temperatures and vapor-liquid ratios makes it adaptable to real-world conditions. Testing at conditions mimicking actual storage tanks or transportation vessels provides directly applicable safety data.
Modern automated instruments deliver results quickly without requiring air saturation procedures, making ASTM D6377 suitable for online applications where traditional sample conditioning cannot be performed. This capability supports continuous monitoring and real-time quality control in production and processing environments.
Vapor pressure measurement complements other petroleum analyses including fuel energy content testing, distillation characteristics, and sulfur content determination. Together, these parameters provide comprehensive characterization that supports both safety compliance and operational optimization.
Implementing Effective Testing Programs
Successfully implementing ASTM D6377 requires appropriate equipment, trained personnel, and robust maintenance procedures. Automated vapor pressure analyzers must meet detailed specifications for temperature control, pressure measurement, and volume adjustment accuracy.
Regular calibration using vacuum pumps and pressure measuring devices maintains measurement accuracy. Following manufacturer instructions for installation, operation, and maintenance ensures instruments perform reliably over extended periods.
ASTM D6377 provides petroleum laboratories with a versatile, accurate method for determining crude oil vapor pressure under various conditions. This test method delivers the reliable data necessary for informed operational and commercial decisions.
