Viscosity is the single most important property of any lubricating oil. It determines whether a fluid film forms between moving parts, how well heat transfers away from critical components, and whether a machine survives its operating conditions.
The Physics Behind Oil Viscosity
Oil viscosity is a fluid's internal resistance to flow. More precisely, it is the ratio of shear stress to shear rate: the force required to move one layer of fluid past another divided by how fast those layers move relative to each other.
A practical way to think about it: imagine two beakers, one filled with turbine oil and one with a heavy gear oil. Tip both on their sides. The turbine oil flows out quickly; the gear oil moves slowly. That difference is viscosity in action.
Two values are used to express it:
- Kinematic viscosity measures resistance to flow under gravity. It is reported in centistokes (cSt), which equals mm²/s in SI units, and it is the standard for most industrial and fuel applications.
- Dynamic (absolute) viscosity measures the force required to overcome internal fluid friction, the effort you'd need to stir each beaker at the same speed. It is reported in centipoise (cP), or mPa·s in SI units.
For Newtonian fluids, standard lubricating oils, the two are related by density: Kinematic Viscosity = Dynamic Viscosity ÷ Density. For non-Newtonian fluids, such as greases or polymer-modified oils, this relationship breaks down, and using the wrong measurement type can introduce serious errors.
What Changes Oil Viscosity
Four variables drive viscosity:
- Temperature. The dominant factor. Viscosity rises as temperature drops and falls as temperature rises. A gear oil at ISO 68 grade measures around 68 cSt at 40°C but can exceed 1,000 cSt at 0°C. OEMs publish temperature-viscosity charts so engineers can confirm the right grade for operating conditions.
- Pressure. Significant in high-load applications such as metal forming. As pressure increases, viscosity increases, which can protect surfaces in elastohydrodynamic film conditions.
- Shear rate. Relevant for non-Newtonian fluids. Greases and polymer-thickened oils can thin under shear (pseudoplastic behavior) or thicken (dilatant behavior). Viscosity Index (VI) improver polymers can permanently shear-thin over time, causing a measurable viscosity drop in service.
- Base oil type and additives. Different base stock groups have inherently different viscosity profiles. Additive packages, and especially VI improvers, allow formulators to engineer a finished lubricant's viscosity response across temperature ranges.
How Is Oil Viscosity Measured
Laboratories use two principal methods, each suited to different fluid types and applications.
Capillary Tube Viscometer (ASTM D445 / ISO 3104)
This is the standard method for kinematic viscosity. A sample is drawn into a glass capillary U-tube, then released to flow back through the narrow capillary under gravity. The time for the sample to travel between two calibrated marks is recorded, and viscosity is calculated using the tube's calibration constant. The result is reported in cSt.

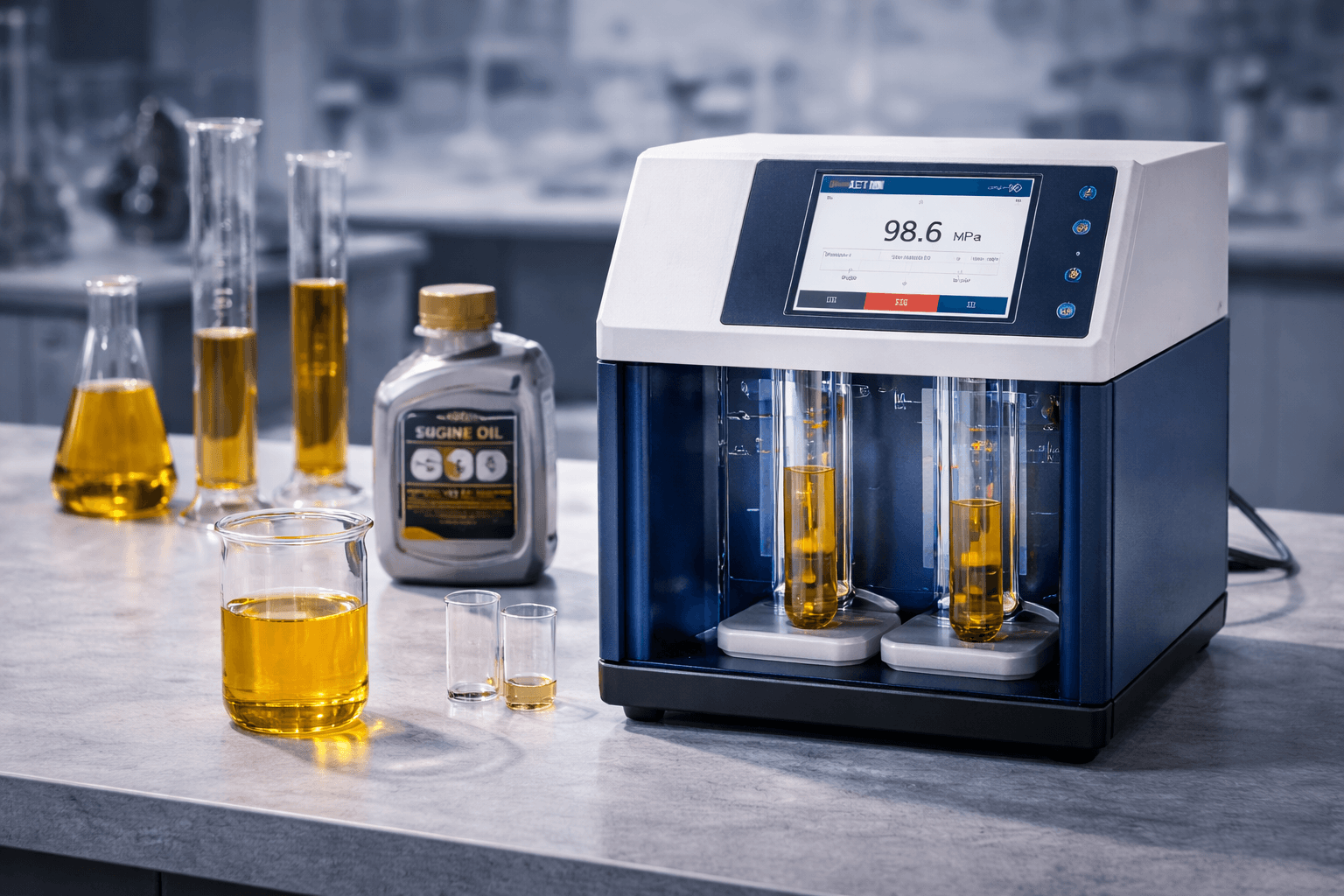

Most commercial oil analysis labs automate this with an oil viscosity tester capable of running multiple samples, reducing operator variability and increasing throughput. Vero Scientific's VeroVis, for example, automates the full sequence, preheating, flow timing, washing, and drying, across a 350-fold viscosity range with timing resolution down to 0.001 seconds.
Kinematic viscosity is almost always measured at a defined reference temperature: 40°C for most industrial oils (the basis for ISO 3448 grading) and 100°C for engine oils (the basis for SAE J300 classification).
Rotary (Brookfield) Viscometer (ASTM D2983)
A metal spindle rotates in the oil at fixed speed. The torque required to maintain that rotation is measured and converted to absolute viscosity in cP. This method is used for cold-temperature testing of engine oils and gear lubricants, the "W" (winter) ratings in SAE grades are determined in part by Brookfield viscosity at temperatures as low as -40°C.
Oil Viscosity Test Standards by Application
Knowing which standard applies to which fluid prevents misclassification errors and non-conformance findings.
Engine Oil Viscosity
Engine oils are classified under SAE J300. The system defines limits at three conditions: low-temperature cranking viscosity, low-temperature pumpability, kinematic viscosity at 100°C, and high-shear viscosity at 150°C. A 5W-30, for example, must meet a cranking viscosity below 6,600 cP at -30°C and a kinematic viscosity between 9.3 and 12.5 cSt at 100°C. The range within each grade gives formulators flexibility; two 5W-30 oils can have meaningfully different viscosities and still carry the same classification.
Hydraulic Oil Viscosity
Hydraulic fluids are graded under ISO 3448, referenced at 40°C. Common grades run from ISO 22 to ISO 100. A hydraulic system running at high ambient temperature may require an ISO 68, while a system with tight clearances or cold startup conditions may need an ISO 32. Viscosity that is too high causes cavitation and sluggish response; too low causes leakage and accelerated component wear.
Lube Oil Viscosity
Industrial lubricants for gearboxes, compressors, and turbines are classified under ASTM D2422 / ISO 3448. Each ISO viscosity grade (e.g., ISO 220) represents a midpoint value with ±10% tolerance, an ISO 220 oil can range from 198 to 242 cSt at 40°C and still meet the grade. Monitoring in-service lube oil viscosity is critical: a shift of more than ±10% from the reference value is typically flagged as a critical alarm in oil analysis programs.
Crude Oil Viscosity
Crude oil viscosity spans an enormous range, from light condensates below 1 cSt to heavy crudes exceeding 100,000 cSt at reservoir temperature. It determines pipeline transportability, refinery processing requirements, and the energy cost of extraction. Measurement is typically performed at multiple temperatures to generate a viscosity-temperature profile, which refiners use for blending decisions and process design.
Heavy Fuel Oil Viscosity
Heavy fuel oils (HFO) used in marine and industrial burners are graded by kinematic viscosity, often at 50°C or 100°C. ISO 8217 is the primary standard. HFO grades such as RMG 380 and RMK 700 reference maximum kinematic viscosity at 50°C (380 and 700 cSt respectively). Because HFO must be heated before atomization, accurate viscosity data at operating temperatures is essential for burner system design and fuel system compliance.
Diesel Oil Viscosity
Diesel fuel viscosity is specified under ASTM D975 and EN 590. Kinematic viscosity at 40°C must fall between 1.9 and 4.1 cSt for standard diesel (Grade No. 2-D). High viscosity causes poor atomization at the injector, reducing combustion efficiency and increasing emissions. Low viscosity reduces lubrication of fuel system components, accelerating wear in injection pumps. For labs receiving diesel at refineries or distribution terminals, routine viscosity testing at 40°C is a primary acceptance criterion.
Jet Engine Oil Viscosity
Turbine and jet engine oils are governed by specifications including MIL-PRF-7808 and MIL-PRF-23699 for military applications, and commercial equivalents such as SAE AS5780. These oils must maintain usable viscosity across an extreme temperature range, from cold-soak startup below -40°C to continuous operation above 200°C. Kinematic viscosity is measured at multiple temperatures, and Viscosity Index is a key specification. A jet engine oil typically targets a VI above 130, often achieved with synthetic PAO base stocks.
How to Read Oil Viscosity Grades
Viscosity grades are not single-point values, they represent ranges. When a product is labeled ISO 46 or SAE 15W-40, it means the oil's measured viscosity falls within a defined bracket, not at an exact number.
For multigrade engine oils, two numbers matter: the "W" number governs cold-temperature performance, and the second number governs high-temperature kinematic viscosity. A 10W-40 must pass cold cranking tests as a 10W oil and meet kinematic viscosity limits at 100°C as a 40-grade oil.
For ISO industrial grades, use ±10% of the grade value to find the min/max limits. ISO 100 permits 90 to 110 cSt at 40°C.
For in-service oil monitoring, labs compare measured viscosity against the new oil reference. A ±5% change warrants investigation; ±10% is typically a critical alert. Common causes of viscosity increase include oxidation, contamination with heavier fluids, or soot loading. Common causes of decrease include fuel dilution, base oil degradation, or shear of VI improver polymers.
Viscosity Measurement Is Only as Good as Its Execution
Accurate viscosity data depends on temperature control precision, tube cleanliness, and timing accuracy, none of which can be taken for granted in manual testing. Automated laboratory viscometers improve repeatability by controlling every variable: bath temperature to ±0.01°C, timing to milliseconds, and cleaning cycles between samples. For labs running high sample volumes or producing data that feeds into batch release decisions, automation is not a convenience, it is a quality control requirement.
Vero Scientific designs measurement instrumentation specifically for fuel, oil, and liquid analysis environments. Contact us to learn how our solutions can support your laboratory's accuracy and throughput requirements.
