Water contamination is one of the most damaging and frequently underestimated threats to lubricating systems. Industries invest heavily in particle filtration, but water often causes equal or greater damage to both the lubricant and the mechanical components it protects. It does so quietly, without obvious early warning signs.
This article breaks down how water in oil emulsion forms, what it does to your equipment and lubricant chemistry, and which detection methods give you the most reliable data for taking corrective action.
How Water Exists in Oil: Three Distinct States
Water exists in one of three phases, each with a different risk profile:
- Dissolved water is the least visible and often the least understood state.
Individual water molecules disperse through the oil at the molecular level. Most industrial oils can hold between 200 and 600 ppm of dissolved water depending on temperature and oil age. Degraded oils hold significantly more, up to three or four times the capacity of fresh oil.
- Emulsified water forms when dissolved water exceeds the oil's saturation point.
At that threshold, water can no longer stay dispersed at the molecular level, so it suspends as microscopic droplets throughout the oill, creating the hazy or cloudy appearance familiar to anyone who's pulled a contaminated sample. This is the water-in-oil emulsion state.
- Free water develops when even more water enters the system.
The two phases separate, with water settling to the bottom of reservoirs and sumps (in mineral oils and PAO synthetics, which have a specific gravity below 1.0). Free water is visible and measurable, but by the time it appears, significant damage may already be underway.
The progression from dissolved to emulsified to free water isn't slow. Temperature swings, system leaks, or condensation can push oil from dissolved saturation to full emulsification quickly.
What Water in Oil Emulsion Actually Does to Your Equipment
The damage mechanisms are more varied than most operators expect.
Mechanical Wear
In journal bearings, water's incompressibility relative to oil disrupts the hydrodynamic film. That film is what separates metal surfaces: lose it, and you get direct metal-to-metal contact. Studies show that just 1% water in oil can reduce journal bearing life by up to 90%.
Rolling element bearings face an additional hazard. Under the extreme pressures and temperatures in a bearing's load zone, emulsified and free water can flash-vaporize instantly. This creates localized erosive wear. Worse, high contact pressures can break water molecules into hydrogen and oxygen atoms. The hydrogen ions absorb into the bearing raceway surface (a process called hydrogen embrittlement) weakening the subsurface metal structure and causing it to crack from the inside out. The eventual result is pitting and spalling that appears to have no obvious external cause.
Accelerated Lubricant Degradation
Water attacks the oil itself. The presence of water can accelerate oxidation rates tenfold, particularly when catalytic metals like copper, lead, or tin are present (common in many bearing alloys). Some synthetic base stocks, including phosphate esters and dibasic esters, react directly with water, breaking down the base stock and generating acids.
Additive packages are equally vulnerable. Sulfur-based AW and EP additives, along with phenolic antioxidants, are readily hydrolyzed by water contamination. This depletes the additive and generates acidic by-products that drive corrosive wear in components with soft metals. Babbitt-lined journal bearings, bronze bushings, and brass fittings are the most susceptible.
Demulsifiers, rust inhibitors, and detergents can also be washed out, leading to sludge formation, filter plugging, and poor water-shedding performance in the oil.
The Target Threshold
Because emulsified and free water are significantly more harmful than dissolved water, the practical control target for most in-service oils is 100–300 ppm, well below the saturation limit. Even at those levels, some damage potential exists. There is no safe floor for water contamination; every reduction matters.
Detection Methods: From Field Screening to Lab Precision
Choosing the right detection method depends on what you need to know and how fast you need to know it.
- Crackle Test. The simplest field method. A drop of oil is placed on a hot plate at 130°C. Water present in the oil vaporizes, producing bubbles. The number and size of bubbles give a rough concentration estimate: small bubbles suggest 500-1,000 ppm; larger, more numerous bubbles indicate 1,000-2,000 ppm; an audible crack signals levels above 2,000 ppm. This method detects free and emulsified water only, dissolved water won't register.
- Calcium Hydride Pressure Cell. A field-portable option where a sample reacts with calcium hydride reagent in a sealed chamber. The resulting pressure change indicates whether free water is present. Costs are low upfront, though reagent expenses and handling precautions should be factored into ongoing use.
- Relative Humidity (RH) Sensors. Thin-film capacitance sensors measure moisture saturation as a percentage of the oil's saturation point. These don't give a direct ppm reading but provide a real-time early warning, detecting when moisture is trending toward the saturation threshold before emulsification occurs. They can be permanently installed on critical equipment for continuous monitoring, making them well-suited for condition monitoring programs.
- FTIR Spectroscopy. Fourier Transform Infrared Spectroscopy detects free, emulsified, and dissolved water, but its practical lower detection limit sits around 1,000 ppm. For screening or trending purposes this is often adequate, but it lacks the sensitivity needed for tight control in precision applications.
- Karl Fischer Titration. The most accurate method available, with detection capability down to 10 ppm (0.001%). Karl Fischer is the preferred test when exact water concentration is required for quality decisions or when monitoring systems where the control threshold is below the sensitivity of other methods.
One important note: sulfur-based EP and AW additives can interfere with results, so the test should be interpreted with that in mind.

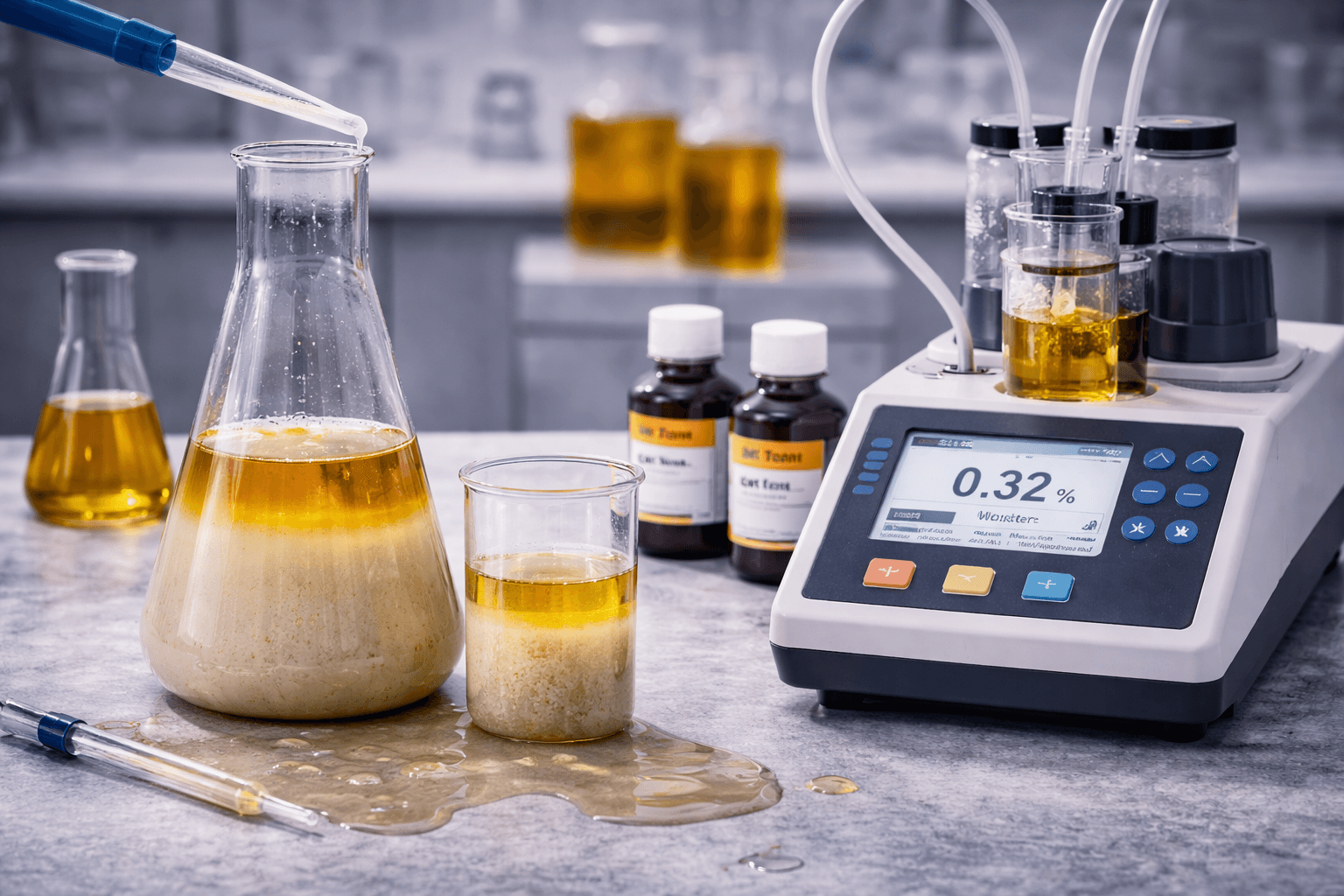

For labs and QC facilities requiring precise, routine moisture quantification across multiple sample types, including transformer oil testing, a dedicated oil moisture analyzer offers the structured workflow and detection range to support both compliance testing and condition monitoring at scale.
Precision Starts with Knowing What's in Your Oil
Water in oil emulsion sits at the intersection of chemistry, tribology, and operational reliability. The damage it causes (bearing fatigue, additive depletion, accelerated oxidation, corrosive wear) is real and measurable, and so is the ability to detect and control it.
Accurate water measurement is the foundation. The goal here is to keep moisture levels below the saturation threshold, identify ingression points early, and protect both the lubricant and the equipment it serves. Vero Scientific provides advanced measurement technologies built for exactly these demands.
