When petroleum products are transported through pipelines in winter, stored in outdoor tanks, or pumped through hydraulic systems at low ambient temperatures, one property determines whether they flow or solidify: the pour point.
What Is the Pour Point?
The pour point is the lowest temperature at which a petroleum product will flow under defined test conditions. Below this temperature, wax crystals that form in the fluid create a rigid structure that prevents movement. The product effectively locks up.
This matters across a wide range of petroleum products, crude oils, distillate fuels, lubricating oils, hydraulic fluids, and fuel oils all have pour points that directly influence their operability at low temperatures. A lubricant with a pour point of -15°C will not pump adequately at -20°C. A diesel fuel that gels in a distribution line at -10°C creates operational failures that are difficult and costly to reverse.
Pour point is distinct from cloud point, though the two are related. Cloud point is the temperature at which wax crystals first become visible, the fluid appears hazy. Pour point is lower, the temperature at which those crystals have grown enough to stop flow entirely. Both matter; pour point is the harder limit.
What Drives the Pour Point of a Petroleum Product
Four factors have the most significant influence:
Wax content
Paraffinic hydrocarbons crystallize as temperature drops, and a high wax content raises the pour point substantially. Highly paraffinic crude oils can have pour points above 30°C, requiring heating throughout transport and storage.
Molecular structure
Straight-chain hydrocarbons crystallize more readily than branched chains or aromatics. Products with a high proportion of n-paraffins will have a higher pour point than chemically similar products with more branching.
Pour point depressant (PPD) additives
Widely used to extend the low-temperature usability of petroleum products. These additives interfere with wax crystal formation, preventing the interlocking structure that stops flow. PPDs can reduce the pour point by 10–30°C depending on the base fluid and additive chemistry. Importantly, PPDs do not eliminate wax, they modify its behavior. This distinction matters when interpreting test results, particularly for treated crude oils.
Contamination and water content
They can raise the effective pour point by introducing nucleation sites for crystal formation or by freezing and physically blocking flow paths.
The Pour Point Test: How It Works

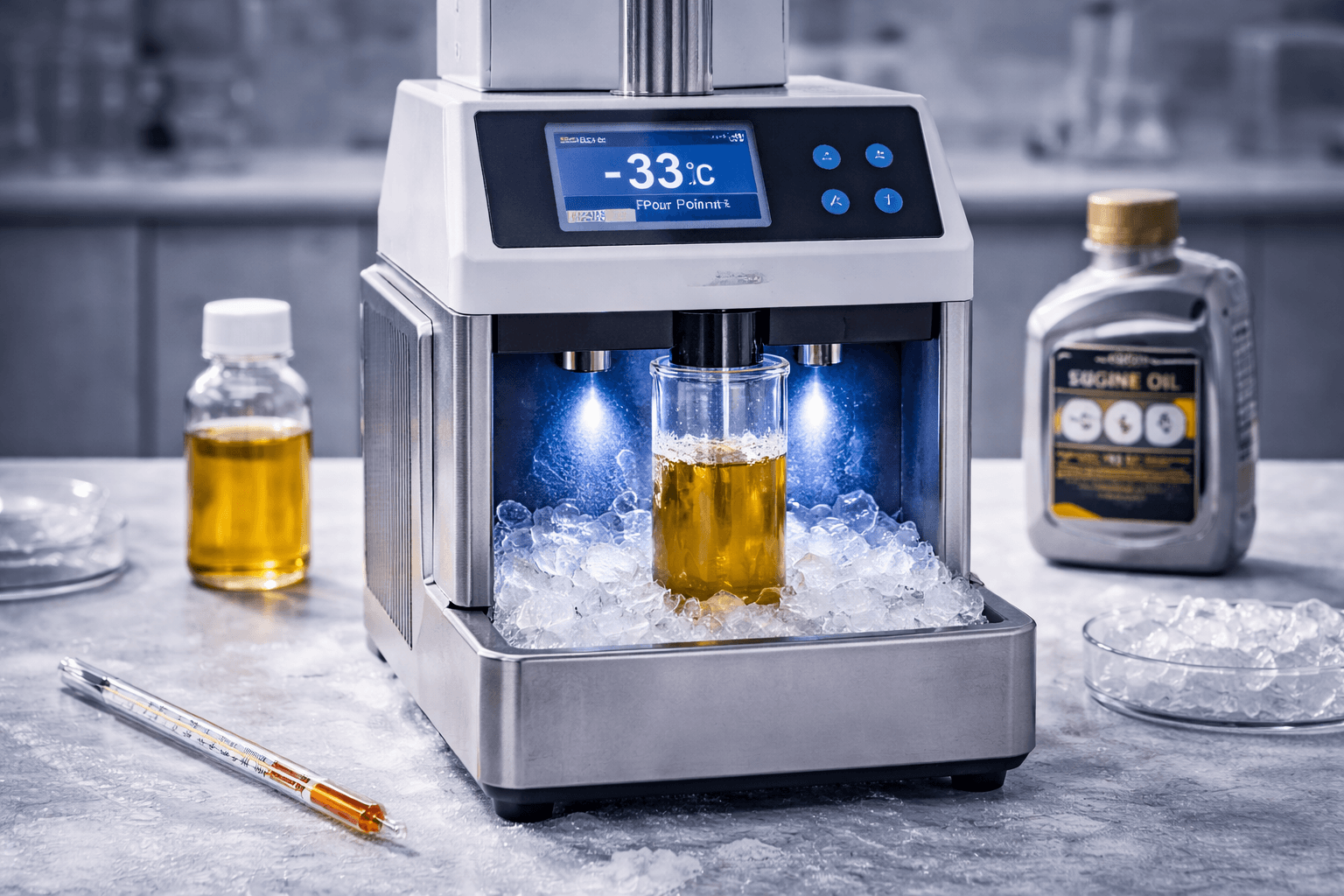

The basic procedure is consistent across standard methods. A representative sample is placed in a test jar and cooled at a controlled rate in a cooling bath. At regular temperature intervals, typically every 3°C, the jar is tilted to check whether the sample flows. Testing stops at the first temperature at which the sample shows no movement when the jar is held horizontal for 5 seconds. The pour point is reported as 3°C above that temperature, which is the last temperature at which the sample still flowed.
The sample should be free of water and solid contaminants, and heating the sample before testing (to erase any thermal history from wax crystals that may have already formed) is specified in most standard methods. Skipping this step produces unreliable results, particularly for products containing PPD additives or high wax content.
The choice of test method depends on the product type, the expected pour point range, and the applicable specification.
ASTM D97
ASTM D97 is the most widely used manual pour point test method globally. It covers a broad range of petroleum products and reports results in increments of 3°C. The procedure involves heating the sample to a specified temperature to dissolve wax crystals, then cooling in a jacket at ambient temperature or in a cooling bath for lower pour points.
ASTM D97 results are referenced in a large number of product specifications and trade contracts, making it the default method for most commercial testing. Its limitation is operator dependency, tilting the jar and judging flow visually introduces variability between analysts. Its precision is limited by the 3°C test interval and by the visual judgment of flow.
ISO 3016
ISO 3016 is the international equivalent of ASTM D97 and follows the same fundamental principle: controlled cooling, periodic flow checks at 3°C intervals, and visual determination of the lowest flow temperature. The two methods are closely aligned in procedure and produce comparable results for most product types.
ISO 3016 is the reference method in many European and international petroleum product specifications and is required for regulatory compliance in markets where ISO standards take precedence over ASTM.
ISO 3016 vs ASTM D97: Key Differences
For most practical purposes, results from ISO 3016 and ASTM D97 are equivalent and are often cited interchangeably in product data sheets. Both report in 3°C increments, both use the same sample conditioning approach, and precision statements are comparable.
The meaningful differences are procedural and scope-related. ISO 3016 and ASTM D97 differ slightly in specified cooling bath temperatures for different pour point ranges, and in some details of the preliminary heating step. When testing waxy crude oils or products with PPD treatment, these procedural differences can occasionally produce results that diverge by one step (3°C). For laboratory accreditation, product certification, or contract testing, it is important to specify which method applies, results from one method should not be reported against the specification of the other without prior validation.
For labs operating across multiple markets, running both methods on the same sample at qualification is a sound practice to confirm equivalence for a given product type.
ASTM D5949: Automatic Pressure Pulsing Method
ASTM D5949 automates the test by cooling the sample and, at each test interval, applying a short pulse of compressed gas onto the sample surface. An optical sensor checks whether the surface moves in response. The pour point is the lowest temperature at which movement is still detected. Unlike the manual method, D5949 can report results at 1°C intervals as well as 3°C, and it removes the operator's visual judgment from the result.
Because detection is automatic and objective, D5949 is well suited to high-throughput labs and to work where operator-independent results are needed for audits or certification.
ASTM D5950: Automatic Tilt Method
ASTM D5950 automates the classic tilt procedure. The instrument cools the sample, tilts the test jar at each 3°C interval, and uses an optical detector to decide whether the sample surface has moved. Because it follows the same principle and interval as ASTM D97, it is often used where results need to track the manual method closely.
Both ASTM D5949 and D5950 are accepted modern alternatives to ASTM D97, offering automation and improved throughput on modern oil analysis equipment without sacrificing accuracy. Many accredited labs run one of the automated methods as the primary procedure and retain ASTM D97 for referee testing or where the specification specifically requires the manual method.
Pour Point Test Methods at a Glance
| Method | Principle | Typical use |
|---|---|---|
| ASTM D97 / ISO 3016 | Manual: cool, tilt the jar every 3°C, judge flow visually | Referee method cited in most specifications |
| ASTM D5949 | Automatic: gas pulse on the surface, optical detection; 1°C or 3°C intervals | High-throughput labs, operator-independent results |
| ASTM D5950 | Automatic tilt with optical detection at 3°C intervals | Automated results that follow the D97 procedure |
| ASTM D5985 | Automatic rotational method | Automated alternative for petroleum products |
| ASTM D5853 | Manual method for crude oils (maximum and minimum pour point) | Crude oil handling and pipeline transport |
Where Pour Point Data Is Applied
The practical applications of pour point testing span the full petroleum supply chain.
In crude oil production and pipeline transport, pour point determines whether heating, dilution with condensate, or PPD injection is required to keep the crude mobile. High pour point crudes, common in West African, Russian, and some Middle Eastern fields, require thermal management from wellhead to refinery.
In lubricant formulation and quality control, pour point is a specification parameter for engine oils, gear oils, hydraulic fluids, and turbine oils. SAE and ISO viscosity grades include pour point limits, and finished lubricants must be tested against these before release.
In fuel distribution, diesel and heating oil pour points determine minimum operability temperatures for storage tanks, fuel lines, and injection systems. Seasonal fuel formulations are adjusted to meet regional pour point targets.
In procurement and incoming inspection, pour point is a standard acceptance test. A product that fails the pour point specification at intake, even if it passes viscosity and flash point, is not fit for use in its intended environment.
Precision, Method Selection, and the Right Equipment
Pour point is a simple test in concept but sensitive to execution. Sample conditioning, bath temperature control, and consistent detection methods all affect result quality. For labs that need defensible, traceable data, whether for internal QC, customer certification, or regulatory compliance, investing in properly calibrated petroleum testing equipment and following the specified method precisely is not optional.
